DK50018

Artikelnr: DK50018

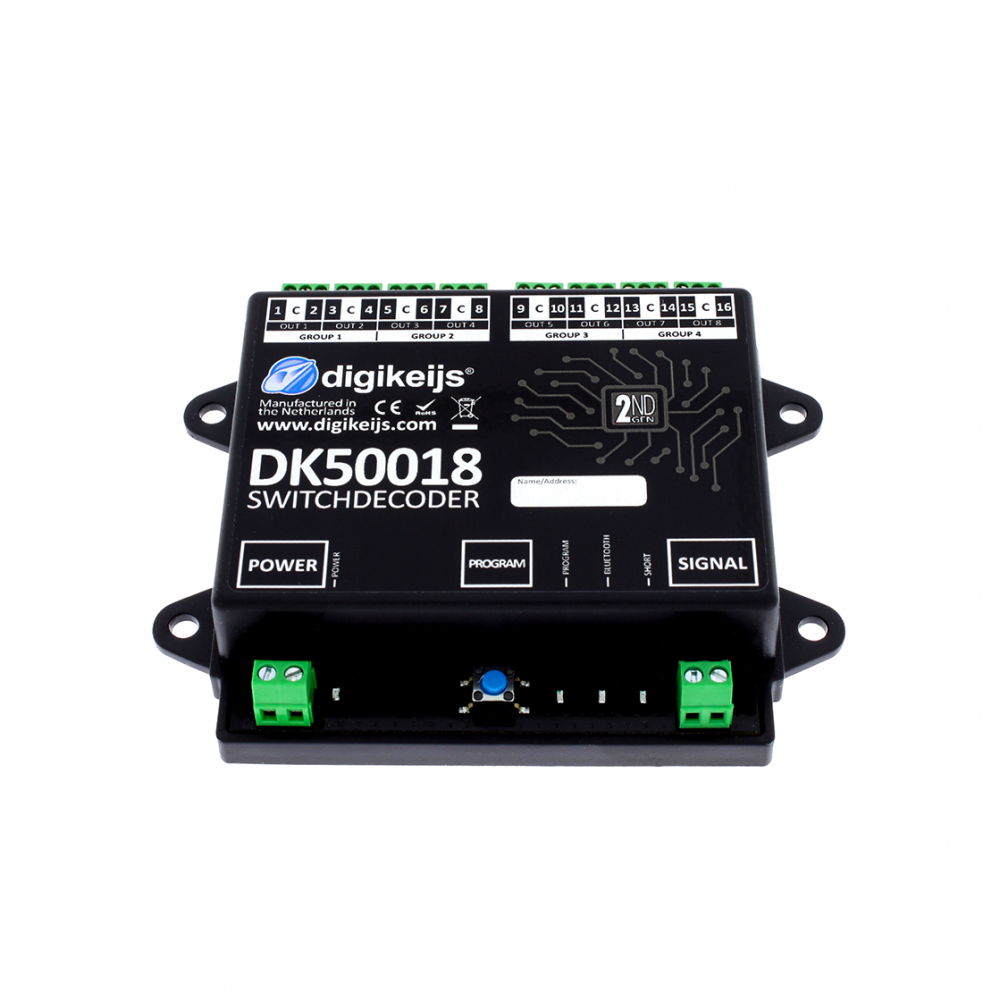

DK50018 Next-generation switch decoder

The DK50018 is our new type smart switch decoder and can be
configured through our new Digikeijs app which is available for Android and iOS.

The app will be multi-language (Dutch, English, German and French)

Features

Fully compatible with the new Digikeijs app
Connect your device through Bluetooth
Free firmware updates through the Digikeijs app
DCC and MM protocol communication
Short Circuit Protection on all outputs
Load presets (all or per output) through the Digikeijs app
Easy to use switchboard through the Digikeijs app
POM cv programming still available
In development

On-going development on new presets based on user input
Easily change preset settings
Custom configuration per output through the Digikeijs app
Save custom configurations and share them with other Digikeijs app users
Technical information

Input voltage: 12 - 24 V DC or DCC rail voltage
Output current per output: up to 3 A
Output current whole module: 3 A
Compatible with: DCC and MM
Dimensions L x W x H: 87 mm x 80 mm x 22 mm
Wired interface: DCC with MM supported
Wireless interface: Bluetooth Low Energy 4.1
Preview of the DK50018 configured through the new Digikeijs app
