73443 - Electric locomotive 143.059, Hector Rail Sound

73443
Artikelnr: 73443
Hectorrail Rc 143.059 Dc Sound

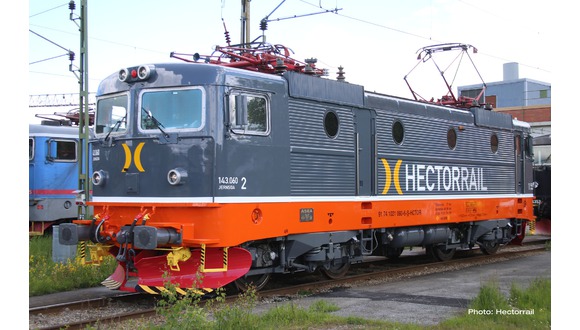

Electric locomotive 143.059 of the Hector Rail. Epoch VI.

Motor with flywheel. Drive on four axles. One axle has traction tyres. LED headlights. Coupler pocket according to NEM 362 standards. PluX22 Interface. Model is equippped with digitally switchable sound functions.

Hector Rail is a successful private Scandinavian railway company. Since the company is on the market (2004) it is expanding their pool of electric locomotive constantly.
In addition to modern vehicles from the Traxx and Eurosprinter families, Hecto Rail bought some standard locomotives from different European railways like f.e some of the Austrian Railway 1142/1012 or the German 151. 2014, and eight locomotives of the Swedish series SJ Rc3. At Hector Rail, the electric locomotives were sorted as series 143.The series SJ Rc3 is the third series of the Swedish Rc and was one of the most spread ones with 366 pieces. The Bo'Bo 'locomotives are about 15.5 meters long and weigh just under 80 tons, depending on the mounted buffers. ASEA has been building those locomotives since the middle of the 1960s for the Swedish national railways Statens Järnvägar (SJ). At the time of their introduction, the machines equipped with thyristor control were top-of-the-range technology and ASEA was one of the world's leading manufacturers of semiconductor technology. During the course of their twenty-year construction, the 3600 kW locomotives were continuously developed. The maximum speed was increased from 135 km / h up to 180 km / h, depending on the application as a freight or fast train locomotive. The locomotives of the third series, the Rc3, drove 160 km / h fast. By means of gearbox exchange and other conversions, locomotives of the second delivery series could be converted to the technology of the Rc3 and also back again. So also Rc3 1059, the later Hector Rail 143.059: Built in the beginning of the 1970er, it was converted after ten years to the Rc2 and then changed almost two-yearly between Rc2 and Rc3. From 1988 she remained an Rc3. The main focus in Rc3-phases were fast D-trains, however also freight trains were to be transported. In 2013, the SJ decided to surrender the Rc3 series engines completely. Eight of the locomotives went to Hector Rail as HCTOR 143. That’s why we speak of the Rc machines as "matured to modern classics". The last three digits of the order number were kept, and so the number changed from SJ Rc3 1059 to 143,059. In addition, the locomotives (as well as the other Hector Rail machines) received names. 143.059 was baptized on "Fenrisulfven". Today 143.059 runs in mixed freight services as in multiple traction before heavy trains.

Specifications:
General data
Number of axles with traction tyres 1
Number of driven axles 4
Coupling NEM shaft 362 without KK-kinematics
Flywheel yes
Electrical
Digital decoder PluX22
Sound yes
Motor 5-pole motor

Interface Electrical interface on traction units PluX22
Head light Swedish headlight changing
LED lighting yes
Measurements
Length over buffer 179
Lagersaldo: slut i lager
